About This

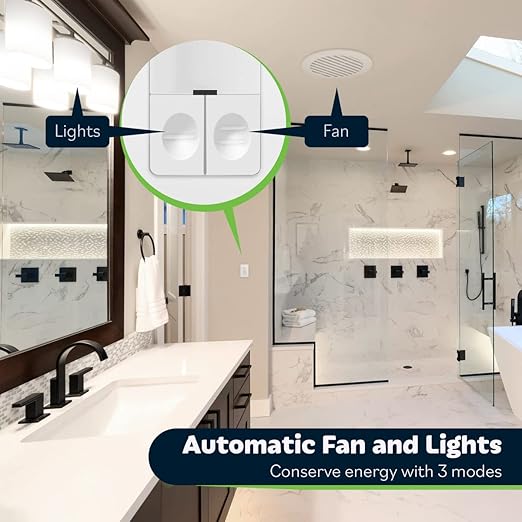

• Connect and automate two separate loads from a single unit; sensor wall switch detects motion to automatically turn lights or fan ON and OFF based on the occupancy or vacancy in a room; ideal for the bathroom, kitchen, or garage
• Passive Infrared (PIR) sensor detects motion with 180° field of view; max distance of 40ft in front of the sensor and 20ft on either side; advanced PIR reduces false triggers from unwanted movements
• Includes walk-through feature: turns lights off after 2 ½ minutes if motion is not detected again within 30 seconds after the original trigger

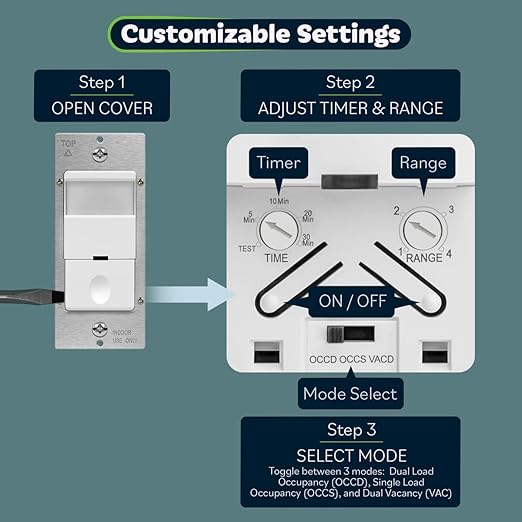

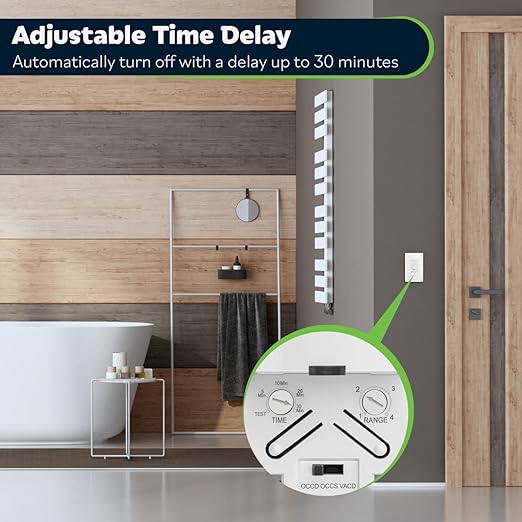

• 3 modes: Occupancy sensor mode (OCCS), dual occupancy (OCCD), and vacancy sensor mode (VACD) allow you to customize the sensor according to your needs; adjustable time delay options: 15 sec (Test), 5 min, 10 min, 20 min, 30 min; change mode with the OCC/VAC switch located under the face of the device

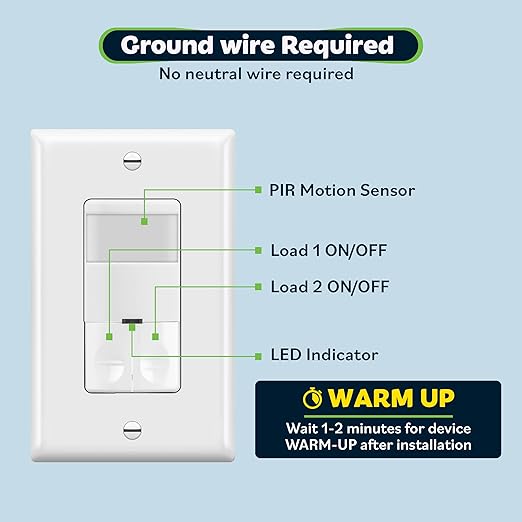

• White color; residential/commercial grade; 1200 square feet max coverage area, 180-degree field of view; no neutral wire required; ground wire required; 120/277VAC@60Hz; 800W incandescent/halogen, 150W LED/CFL, 1/4HP motor rating; operating temperature 32-131ºF; compliant with Title 20 & Title 24; single-pole only; device dimensions: 2.5" W x 4.5" H x 2.5" D; UL listed

Overview

• Brand : TOPGREENER
• Color : White
• Power Source : Corded Electric
• Maximum Range : 20 Feet
• Mounting Type : Wall Mount
